Choosing a dependable 20 ft flat trailer wiring harness is essential for safe and compliant trailer lighting. The right kit offers durable copper conductors, proper insulation, and compatibility with standard 4- or 5-pin flat sockets. This guide reviews five well-rated options, highlighting build quality, wire gauge, color coding, and mounting practicality to help you pick a harness that resists weather, corrosion, and daily wear while simplifying installation.
| Product | Brand | Length | Pin Type |
|---|---|---|---|
| MECMO 4 Way Trailer End Connector Wire | MECMO Store | 20 ft | 4 Pin |
| 18 AWG 20 FT 4 Pin Wiring Harness | wealth | 20 ft | 4 Pin |
| 5-Way Flat Wiring Harness 20 ft | SOLUTIONS GROUP | 20 ft | 5 Pin |
| Goupchn 4-Way Wiring Harness 20 ft | Goupchn Store | 20 ft | 4 Pin |
| Wishbond 4 Flat Extension Kit | Wishbond | 20 ft | 4 Pin |
Note: All five options are designed for standard 4- or 5-pin flat sockets commonly used on trailers, including marine, horse, motorcycle, ATV, and cargo trailers. Each product includes copper conductors, jacketed cables, and color-coded wires to simplify installation and maintenance.

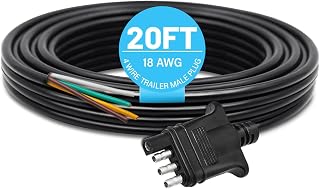

MECMO 4 Way Trailer End Connector Wire 20 Feet
The MECMO kit uses a 20 ft length with jacketed cable and heavy-duty 18 AWG conductors. It features a 4-way flat plug end compatible with industry-standard 4-way sockets, suitable for marine trailers, horse trailers, motorcycles, ATVs, and other cargo trailers. Wire is color-coded (yellow, green, brown, white) and includes four snap locks for easier splicing into existing trailer wiring. This solution emphasizes durability and straightforward wiring, reducing the need for electrical tape and exposed conductors.
18 AWG 20 FT 4 Pin Wiring Harness Kit
This 4-pin harness uses pure copper, 18 AWG conductors designed to provide reliable lighting power for brakes, tail lights, and turn signals. The kit is built for broad trailer compatibility, including marine boats, horse trailers, and utility trailers. Its PVC insulation adds weather resistance and longevity in outdoor environments, with a temperature tolerance up to 105°C and voltage handling suitable for typical trailer lighting systems. Color-coded wires simplify matching to vehicle outputs and trailer inputs.
5-Way Flat Wiring Harness 20 ft
This kit extends to 20 ft and offers a 5-pin connector with color-coded wires to support additional trailer lighting features beyond standard 4-way configurations. The 18 AWG pure copper wires are jacketed for weatherproofing and flex resistance. Users can select from multiple lengths to fit their trailer length while maintaining robust performance for tail lights, brake lights, and turn signals. The kit is designed to be straightforward to install with a vehicle-to-trailer connection.
Goupchn 4-Way Wiring Harness 20 ft
The Goupchn harness employs 18 AWG copper wiring and a rubber-insulated shell for corrosion resistance and flexibility. It is rated for up to 300V and 105°C, making it suitable for a wide range of trailer types, including boat and horse trailers. The 4-pin configuration matches standard flat receptacles and is designed to replace damaged or frayed wiring in an efficient, splice-ready manner. The rugged build aims to provide reliable signaling for tail, brake, and turn lights.
Wishbond 4 Flat Extension Kit
The Wishbond kit provides a 20 ft 4-flat extension with a thick, black PVC jacket that enhances waterproofing and abrasion resistance. Color-coded wires align with standard trailer wiring: white ground, brown tail lights, yellow driver-side lights, and green passenger-side lights. The robust insulation reduces exposure to moisture, road salt, and mechanical wear, supporting long-term trailer lighting performance in diverse weather conditions.
Buying Guide: Key Considerations for 20 Ft Flat Trailer Wiring Harnesses
- Connector compatibility: Confirm whether your trailer uses a 4-pin or 5-pin flat system, and ensure the harness matches the vehicle’s electrical outputs.
- Wire gauge and material: Look for pure copper conductors (typically 18 AWG or 18–16 AWG) for better conductivity and durability under load, with jacketed insulation for weatherproofing.
- Length and flexibility: A 20 ft length offers flexibility for most trailers. Jackets such as PVC or rubberized shells improve resistance to abrasion, moisture, and UV exposure.
- Color coding and labeling: Color-coded wires reduce installer error and help with quick troubleshooting; ensure compatible color standards with your vehicle.
- Durability under conditions: Consider temperature ratings (often up to 105°C) and voltage ratings (commonly up to 300V) to ensure safe operation in varied climates.
- Ease of installation: Look for kits with simple splicing and secure locking connections to minimize installation time and maintenance needs.
- Corrosion resistance: Rubber or PVC jackets combined with copper conductors offer better longevity in harsh outdoor environments and road salt exposure.
- Reliability for multiple trailer types: If you own boats, horses, or ATVs, a kit with universal compatibility reduces the need for multiple harnesses.
- Warranty and support: Check manufacturer warranties and available support resources to address potential wiring issues over time.
- Safety considerations: Ensure proper grounding (white wire) and correct matching of brake, tail, and turn signals to prevent lighting failures.
